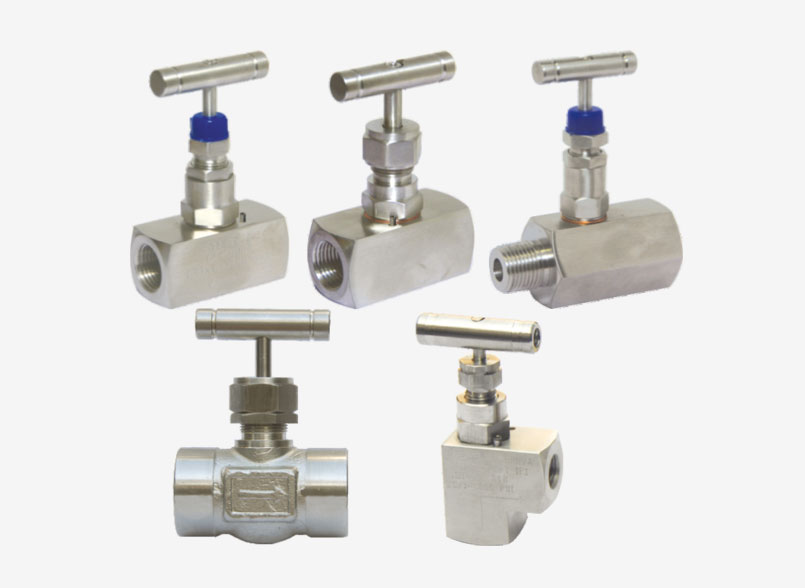

Product Name : Needle Valves

Description : • Needle valves are Forged or Bar stock body construction straight or angle pattern with panel mounting option Union bonnet, Screwed bonnet, Integral bonnet.
• Our variety of end connection includes single or twin ferrule tube fittings male or female threaded NPT, BSP, ISO.
• Material Construction: S.S. 304, S.S. 316, Carbon Steel (CS), Brass and Monell.
• Testing: 100% test at 6000 PSI

Size : INCH 1/8" to 2½"

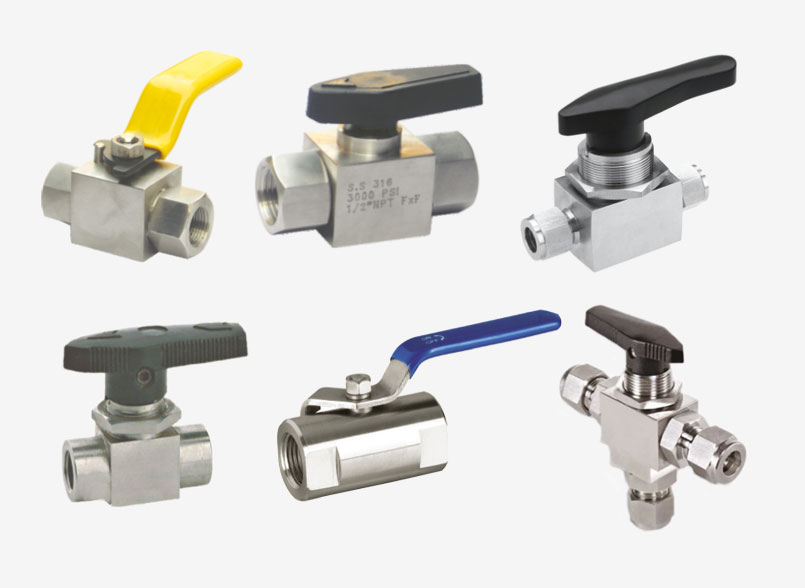

Product Name : Ball Valves

Description :

• Ball valve are Two way, Three way, Fourway, Five way and Three piece design, Two piece design.
• Floating ball design to ensure leak-proof shut off.
• Floating ball design to ensure leak-proof shut off.
• Material Construction : S.S. 304, S.S. 316, Carbon Steel (CS), Brass and Monel.

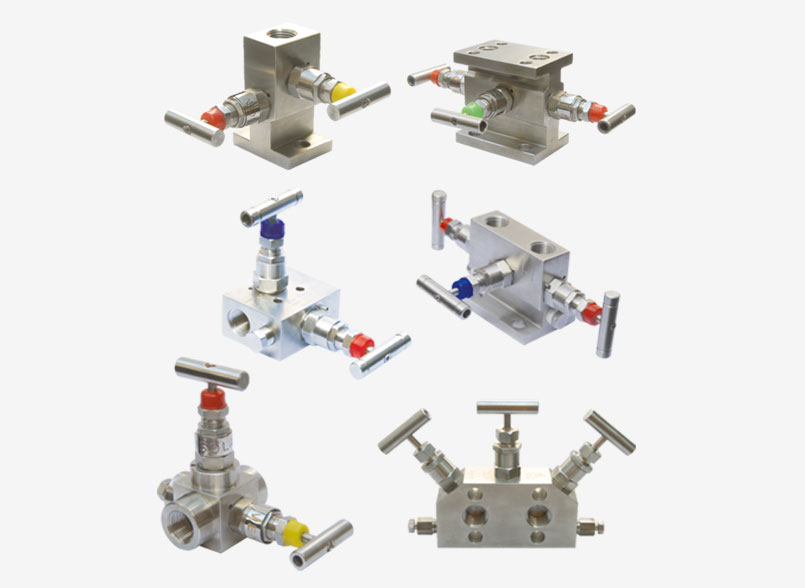

Product Name : Manifold Valves

Description :

• Manifolds Valves are Two way valve/Three way valve/Five way valve.
• These Manifold valves are remote mounting (pipe to pipe: 'R' type, Direct mounting), (pipe to flange: T'type), (flange to flange: "H'type),
• Pressure Rating: Up to 6000 PSI
• Material Construction: S.S. 304, S.S. 316, Carbon steel (CS) and wide range of optional material.
• Manifold valves consist½" NPT (F), Pipe to Pipe, Pipe to Flange or Flange to Flange connection on 54mm (2", 1/8") centers and 1/4" NPT (F) for drain.
• Testing: Each valve on every manifold is 100% tested with nitrogen at 2000 PSI for leakage at the
